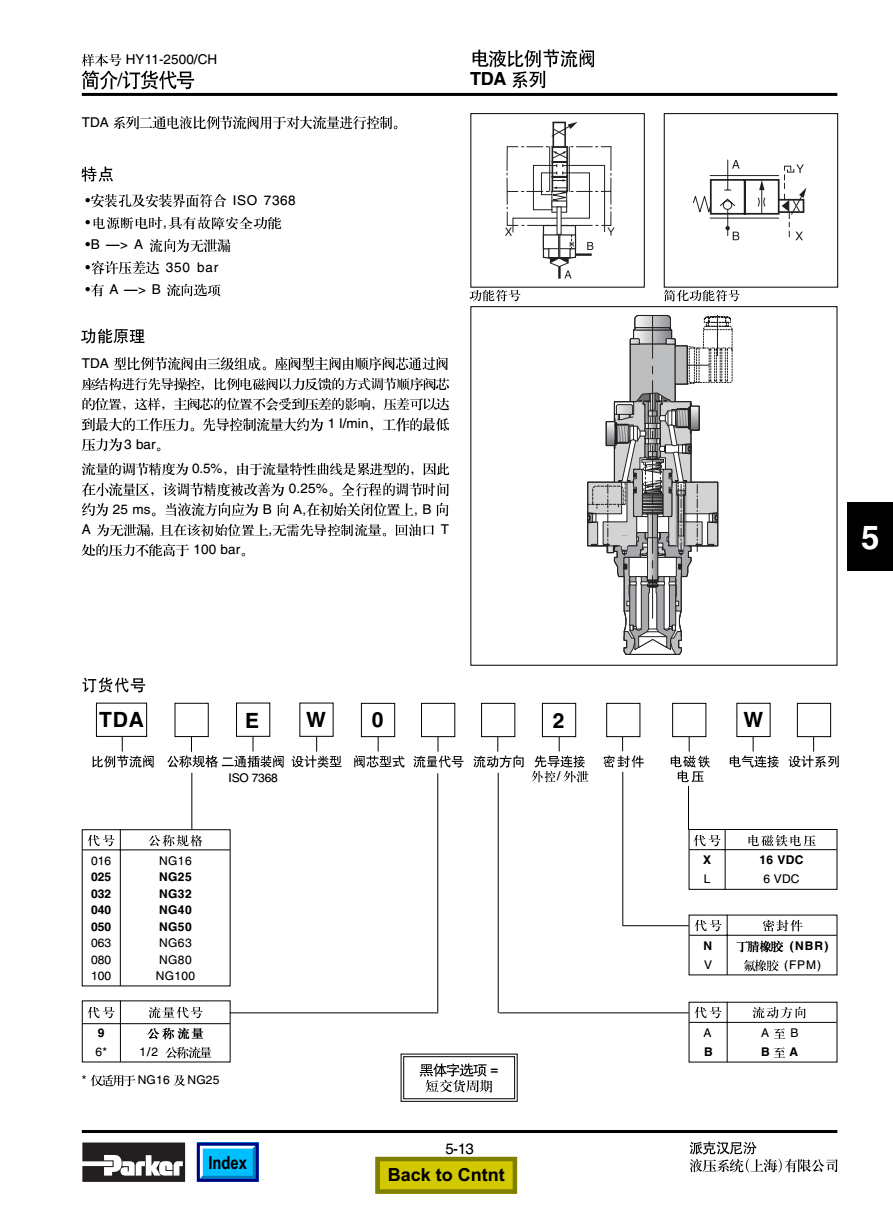

Parker派克TDA系列比例節流閥是由三級組成。閥錐由座閥結構的伺服閥芯進行先導控制。帶力反饋的比例電磁閥調節伺服閥芯的位置。因此閥錐的位置不會受到壓差的影響。壓差可以達到最大的工作壓力。先導控制的控制油流量大約為1 l/min。工作的最低壓力為3 bar。控制壓力必須大于A口處系統壓力的25％。流量的調節精度為0.5％。由于流量特性曲線是漸進的，因此當小流量時，該調節精度在漸進區域內被改善為0.25％。整個行程的調節時間大約為25ms。當油液由B向A流動時，在關閉的初始位置上由B向A不能有泄漏。在該初始位置上先導控制不需要控制油。回油口T的壓力不能高于100 bar。

TDA系列電液比例節流閥單元

電液比例節流閥單元 -TDA系列

經久考驗的二通比例節流閥單元系列TDA具有對大流量進行精細節流控制的特點, 用于大流量液壓系統的高效、可靠的操控。

派克的TDA系列二通電液比例節流閥單元具有一些優異的特性, 如高分辨率及重復精度, 以及令人滿意的性價比和經濟的運行成本。TDA 閥用于大流量的控制, 結合使用 PCD00A-400 型數字功率放大器, 閥的工作參數可進行存儲、修改和復制。

市場:

? 工業設備

? 注塑成型機

特點/優勢:

? 經久考驗的, 極其堅固的設計, 插件安裝孔及安裝界面符合 ISO 7368 - 確保可靠的工作

? 8 檔規格: NG16 至 NG100 - 規格尺寸范圍廣, 適用于絕大部分液壓系統

? 先導油液需求少 - 功效高

? 高分辨率及重復精度 - 對產品精度至關重要

? 供貨周期短 - 無需庫存

? F具有失電故障安全功能

? 油口 B 至 A 無泄漏

? 壓差可能高達 350 bar

應用領域:

? 通用壓機

? 壓鑄機

? 注塑成型機

技術功能:

TDA 比例節流閥單元為3 級控制結構: 第一級為比例電磁鐵操控的閥芯/閥套結構的先導級, 第二級由控制彈簧和順序閥芯構成, 主級則為閥芯、閥套組成的二通插件。比例電磁鐵推動先導閥芯與控制彈簧的反饋力相平衡, 并由此控制順序閥芯的位置, 而主級閥芯則跟隨著順序閥芯動作, 從而控制油口 B 至油口 A (油口 A 至 B 為可選項) 的開口面積與電磁鐵的輸入電流成正比。主閥芯的位置與A、B 口的壓差無關, 因此, 該壓差可與最高工作壓力一樣高。

性能特點

安裝方式 二通插件

操作樣式 先導

啟動 比例

系列型號 節流閥

重量 (KG) 3.1至87,取決于尺寸
